PECVD & Magnetron Optical Films Deposition System Polyhedron Structure Vacuum Coating Machine

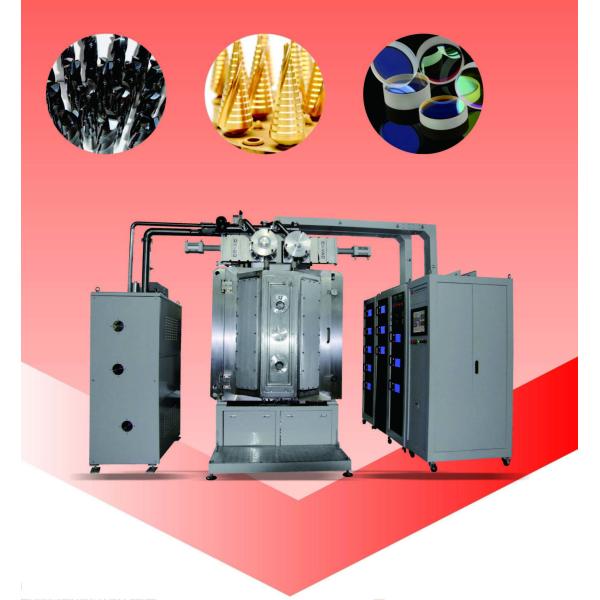

The Multi950 machine is a customized multiple functions vacuum deposition system for R&D. With half year’s discussion with Shanghai University’s team leaded by Professor Chen, we finally confirmed the design and configurations to fulfill theirs R&D applications. This system is able to deposit transparent DLC film with PECVD process, hard coatings on tools, and optical film with sputtering cathode. Based on this pilot machine design concept, we have developed 3 other coating systems after then:

1. Bipolar Plate Coating for Fuel Cell Electric Vehicles- FCEV1213,
2. Ceramic Direct Plated Copper- DPC1215,
3. Flexible Sputtering System- RTSP1215.

These 4 models machine are all with Octal chamber, flexible and reliable performances are extensively used in various applications. It satisfy the coating processes require multi different metal layers: Al, Cr, Cu, Au, Ag, Ni, Sn, SS and many other non-feeromagnetic metals;
plus the Ion source unit, efficiently enhance films adhesion on different substrate materials with its plasma etching performance and, the PECVD process to deposit some carbon-based layers.

The Multi950 is the milestone of advanced design coating systems for Royal Tech. Here, we grateful thanks Shanghai University students and especially Process Yigang Chen, his creative and selfless dedication are unlimited values and inspired our team.

In year 2018, we had another project cooperation with Pressor Chen, the C-60 material deposition by
Inductive thermal evaporation method. We heartfully thank Mr. Yimou Yang and Professor Chen's leading and instruction on every innovative project.

Advantages:

Compact Footprint,
Standard Modular Design,
Flexible,
Reliable,
Octal Chamber,
2-door structure for good access,
PVD + PECVD processes.

Design Features:

1. Flexibility: Arc and sputtering cathodes, Ion source mounting flanges are standardized for flexible exchange;
2. Versatility: can deposit variety of base metals and alloys; optical coatings, hard coatings, soft coatings, compound films and solid lubricating films on the metallic and non-metallic materials substrates.

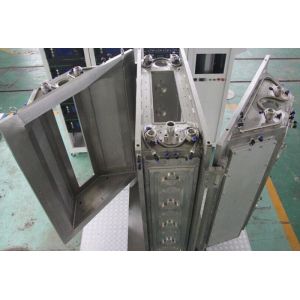

3. Straight forward design: 2-door structure, front & back opening for easy maintenance.

Technical Description:

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.

Shanghai Royal Technology Inc. was established in 2006, a worldwide supplier of high quality vacuum equipment with key locations around the globe. Research and Development technology are supported by specialized engineers in the United States and China. High-tech machine manufacturing facilities are located in Shanghai and our global network of service centers ensure fast customer service response in key locations.

 Shanghai Royal Technology has a strong drive for innovative design and high quality components selection, combined with an extra careful assembly process and a topnotch team of talented technicians and inventors, which enable us to offer turn-key coating solutions with high standard vacuum equipment, meeting and often exceeding Western standard. We are determined to serve the market worldwide in various industries such as:

Consumer electronics, automotive, renewable energy, architecture, Nano and bio-medical materials.

RTAS model,the arc and sputtering integrated series equipment can produce highly reflective black and bronze films specifically for high quality decorative coatings.

RTSP1200-FCEV, It is a sputtering system with PECVD process to deposit thin film on hydrogen fuel cell power modules. Fuel Cell Vehicles is the newest technology for the next generation of environmentally friendly cars. The main advantage and technological progress compared to commonly used batteries like dry cell need to undergo a recurring recharging process, but hydrogen fuel cell power modules only require Hydrogen and Oxygen reaction to generate power for driving.

RTSP1200-DPC,This coating system is exclusively used for the DPC (Direct Plating Copper) ceramic substrates process. The DPC ceramic substrates are widely used in various applications: for instance in high brightness LED to increase the longevity because of its high heat radiation performance, Semiconductor equipment, in microwave wireless communication, military electronics, various sensor substrates, aerospace, railway transportation, electricity power and much more.

RT-CsI950, Evaporation coating plant is applied to CsI film deposition for X-Ray Imaging devices. It is an advanced technique to evaporate CsI on the screen to create high quality images. The high-resolution performance allows this application to be extremely efficient and disruptive in the medical instrument, nuclear energy industry, security checking and inspection, high energy physics subjects and more.

Shanghai Royal Technology also successfully designed and developed Cube and Cylinder model large size Aluminum Vacuum Metalizing System which is used for Automotive Logo Board Coating.
